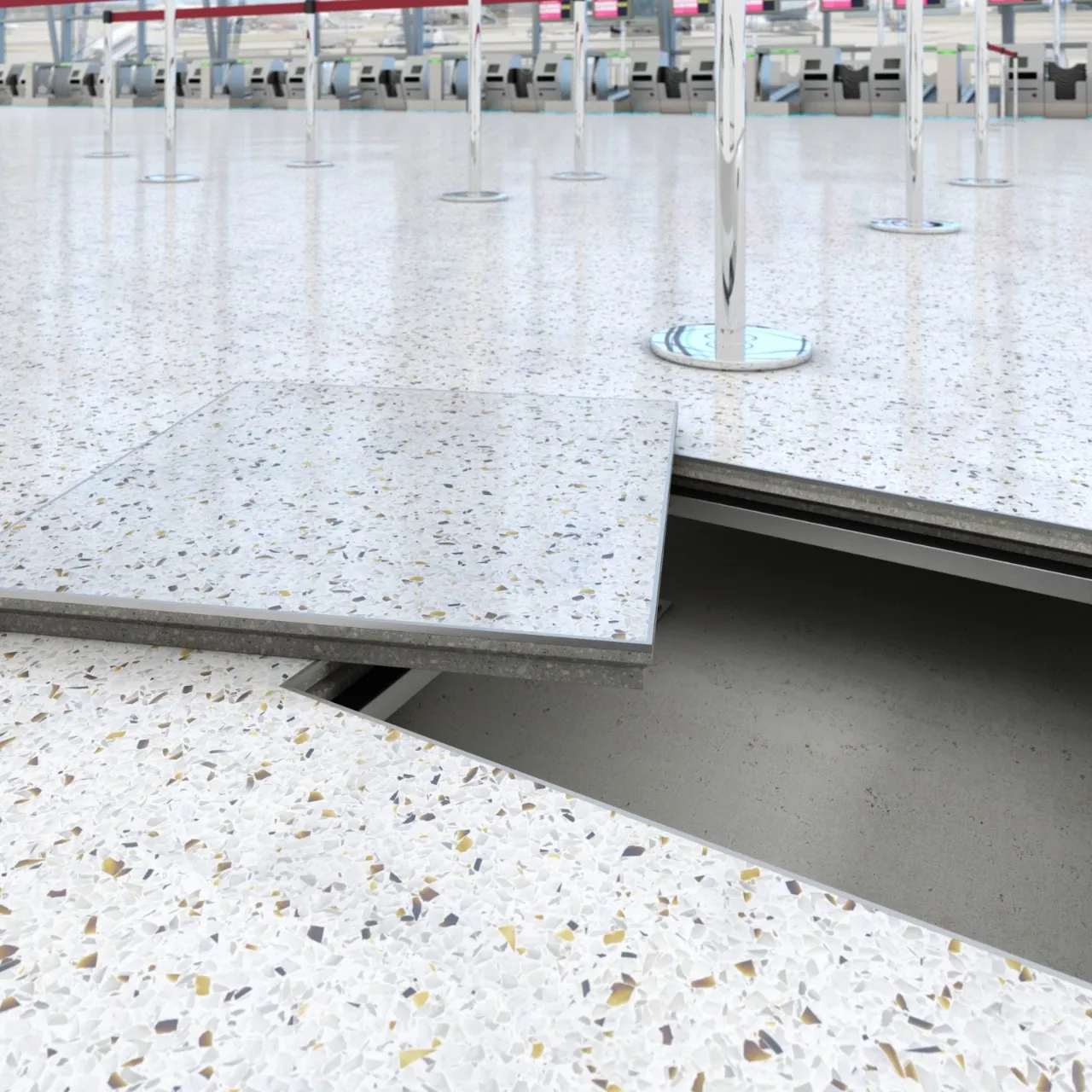

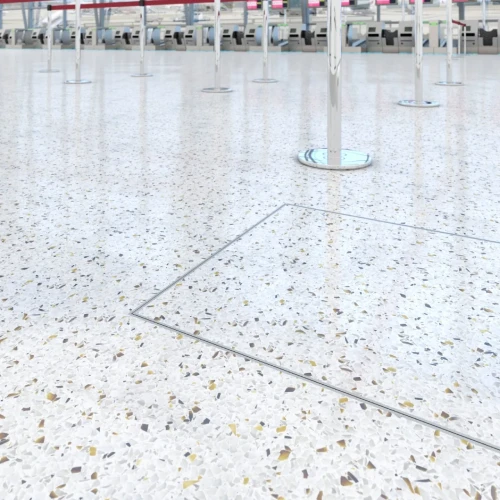

A raised floor system designed for specific applications that require limited or no access to the underfloor area. Hatch panels can be planned in the floor layout to allow underfloor access as needed. Cavity floors provide a service distribution pathway so that service can be accessed without degrading the integrity of the building. The finish-ready tongue-and-groove cavity floor offers the ultimate substrate for field-applied finishes.
1500 lb design load.Panels are 60cm nominal size.Planned hatch panels allow underfloor access.Non-combustible.E-coated steel bottom sheet.Meets Tate Standards per CISCA testing methods.System Performance Criteria (Tested on Actual Understructure*)
| System Type | System Weight (lbs/ft2) |
Static Loads | Rolling Loads | Impact Loads |
||||
|---|---|---|---|---|---|---|---|---|
| Panel | Understructure | Design Loads1 |
Minimum Ultimate Loads |
Safety Factor2 |
10 Passes |
10,000 Passes |
||
| Cavity Floor | 4' - 2" Wide x 1" Deep Bolted Stringer |
15.5 lbs/ft2 | 1500 lbs | 2250 lbs | 1.50 | 1250 lbs | 1000 lbs | 150 lbs |
*All tests are performed using CISCA's Recommended Test Procedures for Access Floors with the exception of Design Load
1. System Design Load is based on permanent set ≤ 0.010” and is verified by loading panels in accordance with the CISCA concentrated load method but with panels installed on actual understructure instead of steel blocks. (Testing on blocks does not represent performance of an actual installation.) Ultimate, Rolling, and Impact Load tests are performed using CISCA Test Procedures.
2. Safety Factor is Ultimate Load divided by Design Load.
